Description:Samsung/Hanwha SM482 Plus Pick and Place Machine Speed: 30,000CPH (Optimum) Structure: 1 Gantry x 6 Spindles/Head Component range: 0402(01005) PCB Size: L460xW400MM

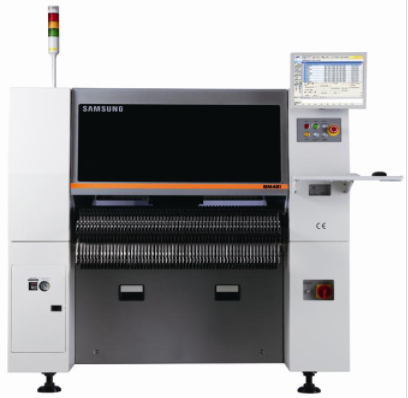

SAMSUNG Hanwha SM482 Plus Pick and Place Machine
1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)
1. Advanced High Speed Flexible Mounter.
2. High Speed, High Precision and Electrically Driven Feeder.
3. New Vacuum System and Optimized Pickup/ Placement Motion.
|
Specifications |
SAMSUNG HANWHA Pick and Place Machine |
||
|
Model Name |
SM471plus |
SM481plus |
SM482plus |
|
Alignment |
Flying Vision |
Flying Vision+stage vision |
Flying Vision+stage vision |
|
Spindles |
10 Spindles × 2 Gantries |
10 Spindles × 1 Gantry |
6 Spindles × 1 Gantry |
|
Placement Speed |
78,000CPH(Optimum) |
40,000CPH(Optimum) |
30,000CPH(Optimum) |
|
Placement Accuracy |
±40μm@μ±3σ |
±40μm@μ±3σ |
±40μm@μ±3σ |
|
Applicable Parts |
0402 ~ 14mm(H 12mm) |
0402 ~ 42mm(H 15mm) |
0402 ~ 55mm(H 15mm) |
|
Applicable PCB(L × W) |
Max. 510 × 460(Standard) |
Max. 460 × 400(Standard) |
Max. 460 × 400(Standard) |
|
Max. 610 × 460(Option) |
Max. 1500 × 460(Option) |
Max. 1200 × 510(Option) |
|
|
Dimension(L.D.H) |
1650×1690×1458 |
1650×1680×1530 |
1650×1680×1458 |
|
Mass(Kg) |
Approx. 1820 |
Approx. 1655 |
Approx. 1600 |
