DECAN S2

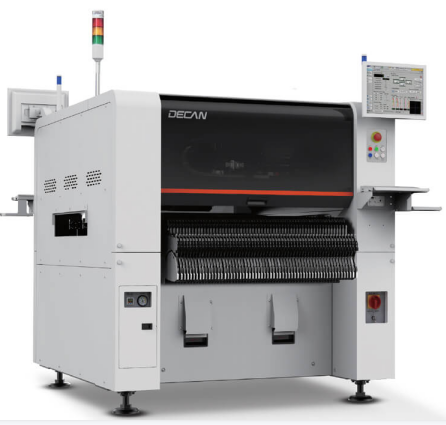

SAMSUNG Hanwha Decan S2 Pick and Place Machine

HIGH PRODUCTIVITY - Optimizing PCB transportation paths for productivity improvement

■ Modular Conveyors.

■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.

■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed

Twin Servo Control.

■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head.

■ Minimized head movement path through recognizing parts during transportation following parts installation.

■ 10-spindle head with individually operating Z axes.

HIGH RELIABILITY

■ Placement Accuracy: ±28㎛ (03015), ±25㎛ (IC).

■ Applied with a high-precision linear scale and rigid mechanism.

■ Provides precision calibration algorithms and diverse automatic calibration functions.

FLEXIBLE LINE SOLUTION - Provides optimal line solutions through versatility and productivity improvement

■ Optimal line configuration from chips to uniquely-shaped components according to options setup.

Equipment capable of responding to large-scale PCBs, which can be remodeled on site.

■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling.

– Responsive to a maximum 1,200 x 460mm PCB.

■ Responsive to uniquely-shaped components (including tray components).

EASY OPERATION - Strengthened equipment software operation convenience

■ Convenient production and editing of work programs with built-in equipment optimization software.

■ Provision of a range of work data and information on a large-scale LCD screen.

■ High-precision, convenient electric feeder.

■ Calibration and maintenance-free electric feeder.

■ Improved work convenience with a single reel bank mounted feeder.

■ Improved productivity through the provision of  automatic parts pick-up position alignment between feeders.

■ Reduced work load through parts connection automation (smart feeder).

■ Automatic loading and splicing capabilities implemented as an industry first .

– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

■ Zero consumables costs for parts connection attained.
