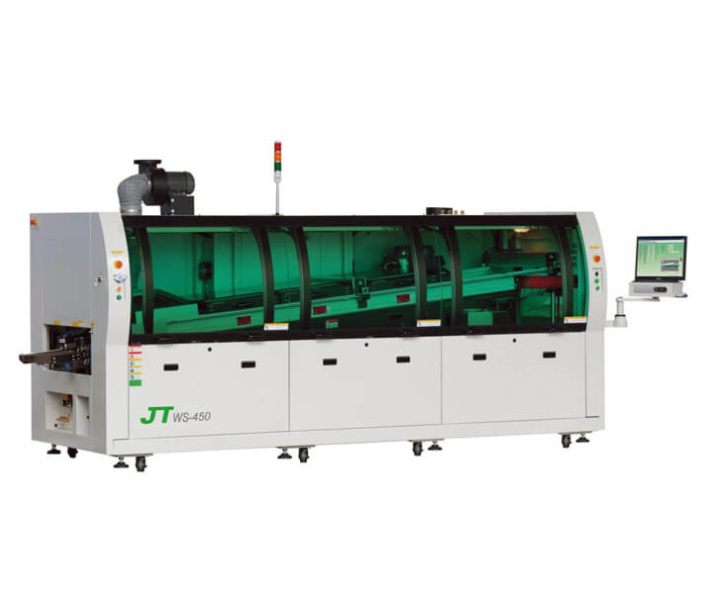

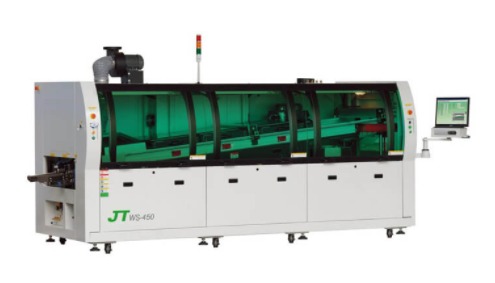

Wave Soldering Machine WS-450

Four preheating zones
Preheating length: 2480 mm
Control system: PC + PLC
Dimensions: 4350(L) x 1600(W) x 1730(H) mm

Product Description:

DESCRIPTION:
1. Free combination of preheating module can be arbitrary chosen hot air and infrared preheating Preheat diverse portfolio.
2. Maximum transport capacity of the entire rail 60 kg, meet the demanding production needs.
3. Low tin slag amount of oxidation, new wave nozzle design, tin furnace has automatic access lifting function.
4. Regional selective spray flux can save more than 70%.
5. Free combination of preheating module can be arbitrarily chosen hot air and infrared preheating preheat diverse portfolio.
6. Segmented transport rail design, 60 kg rail transport capacity, the maximum width of products through increased to 610 mm.

SPECIFICATIONS:

Dimensions	4350(L) x 1600(W) x 1730(H) mm
Power supply	3P 5 W, 380 VAC, 50/60 Hz, 63 A
Power	80 kW
Total power	45 kW
Working power	Approx. 12.5 kW
Control system	PC + PLC
No. of preheating zones	4
Preheating length	2480 mm
Preheating temp.	Room temp - 250°C
PCB size	50 - 450 mm
Height	Top: 120 mm; Bottom: 25 ± 5 mm
Speed	300 - 1800 mm/min
Entry height	750 ± 20 mm (Option: 900 ± 20 mm)
Conveyor angle	4 - 7°
Conveyor motor power	90 W 3P 220 VAC
