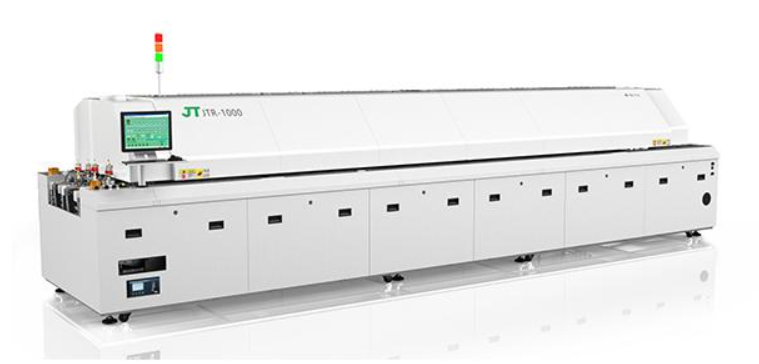

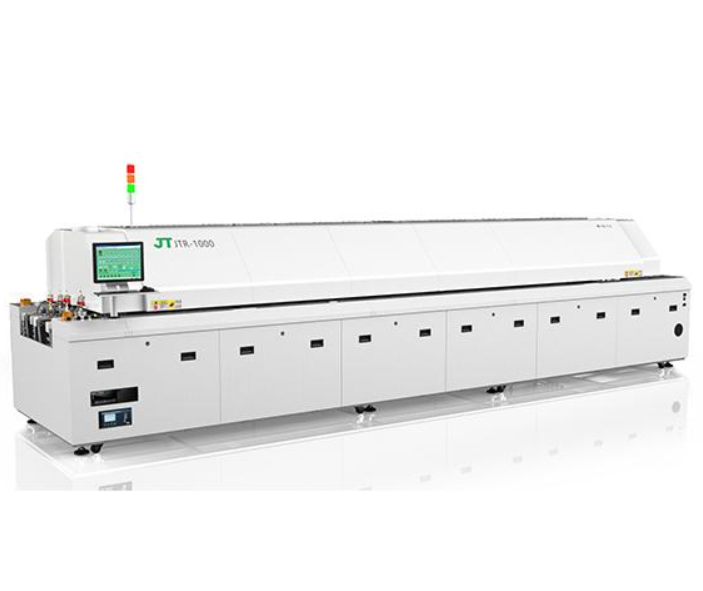

Offering 2 diffrent Lead Free 6 zones Reflow ovens. 6 top & bottom heating zones and 1 cooling zones. The models Available: JTR-600 Air. JTR-600N Nitrogen. All models are Mesh & Rail with 400 mm width and 610 mm optional.
DESCRIPTION:
1. Reinforced main hanging bracket to avoid rall deformation and board jamming.
2. Mutilayer thermal insulation design. The Surface temperature of the Oven body is reduced by 10 to 20 degrees, reducing the temperature of the working environment efctively.
3. New cooling configuration to make the fitered or reclaimed air back to oven chamber, it can reduce the thermal loss as well as get better flux collection.
4. 15% heat transterring efficiency was improved to deal with the lead free process with more complicated and larger products.
5. The dual-rails conveyor is able to improve the production eficiency as well as save power and cost.
6. Use the full protection of the sealed oven design to prevent nitrogen losing. So the lowest concentration of oxygen can be reached to 150ppm.
7. Ntrogen consumption is only 20-22M /H with the oxygen level 300-800ppm.
8. Nitrogen. closed-loop control. system Is optional.: energy saving and environmental protection.
MODEL
JTR-600/JTR-600-N
JTR-800/JTR-800-N
JTR-1000/JTR-1000-N
JTR-1200/JTR-1200-N
Outside Dimension（L*W*H）
4190 x1430 x1530
5520 x1430 x1530
6300 x 1430 x 1530
7050 x 1430 x 1530
Weight
1850KG
2400KG / 2500KG
2700KG / 2800KG
3000KG / 3100KG
Number Of Heating Zones
Up /Bottom 6
Up /Bottom 8
Up /Bottom 10
Up /Bottom 12
Length Of Heating Zones
2295mm
3110mm
3890mm
4640mm
Number Of Cooling Zones
1(Cool Air Conversion)
Up 3 / Bottom 3 (Cool Air Conversion)
Exhaust Volume
10 M3 / min x 2 ( Exhausts)
Electric Supply Required
3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required
48KW / 51KW
64KW / 67KW
80KW / 83KW
93KW / 97KW
Power For Warm Up
24KW / 26KW
30KW / 32KW
36KW / 38KW
40KW / 42KW
Power Consumption
6.5KW / 7KW
9KW / 10KW
10KW / 11KW
11KW / 12KW
Warming Time
Approx. 20 minu
Approx.25 minu
